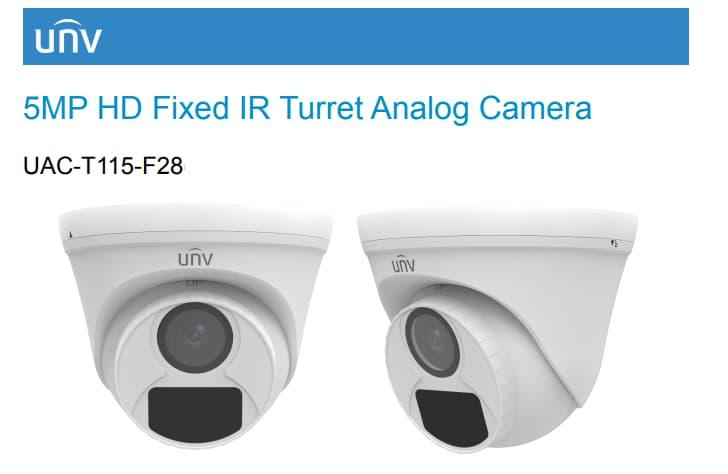

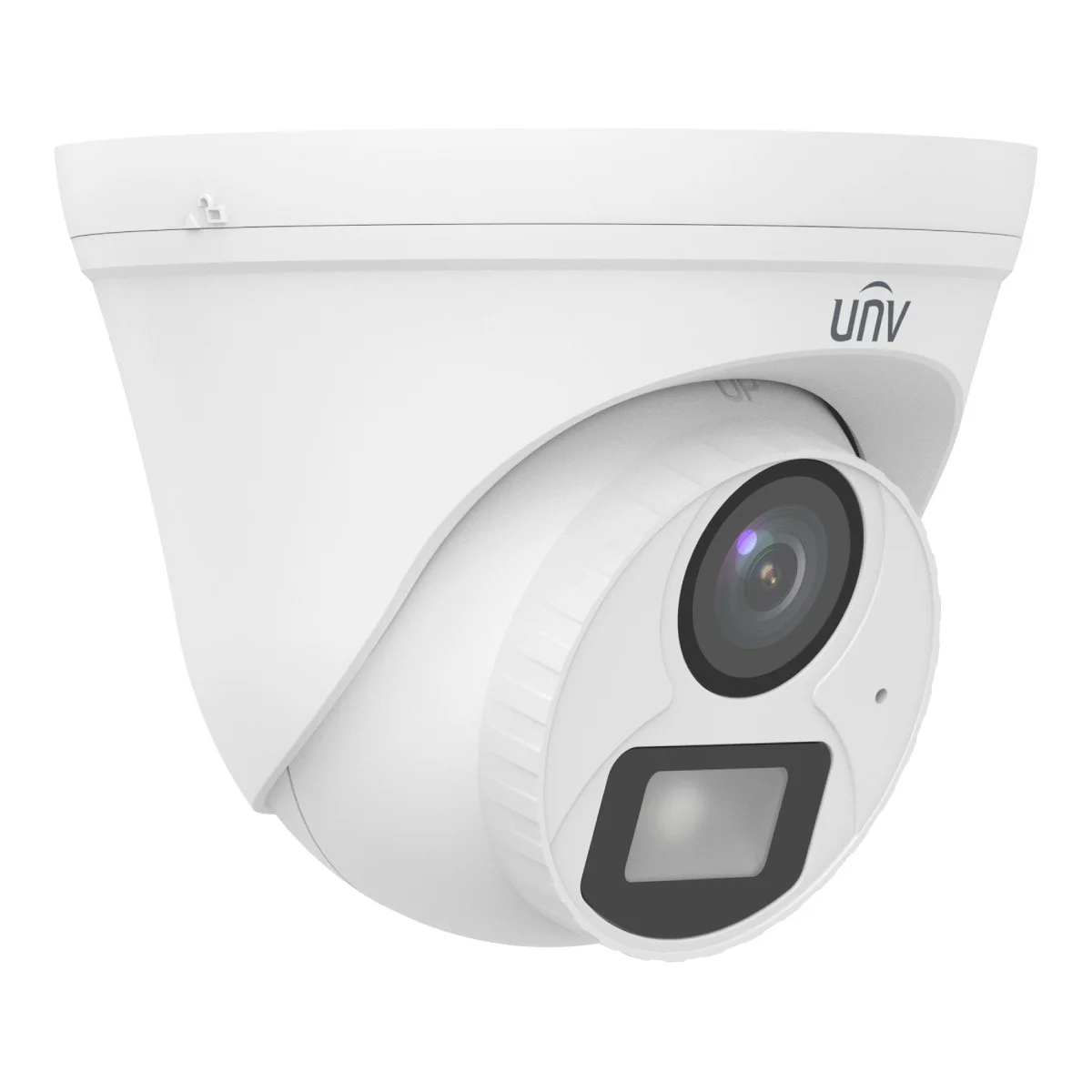

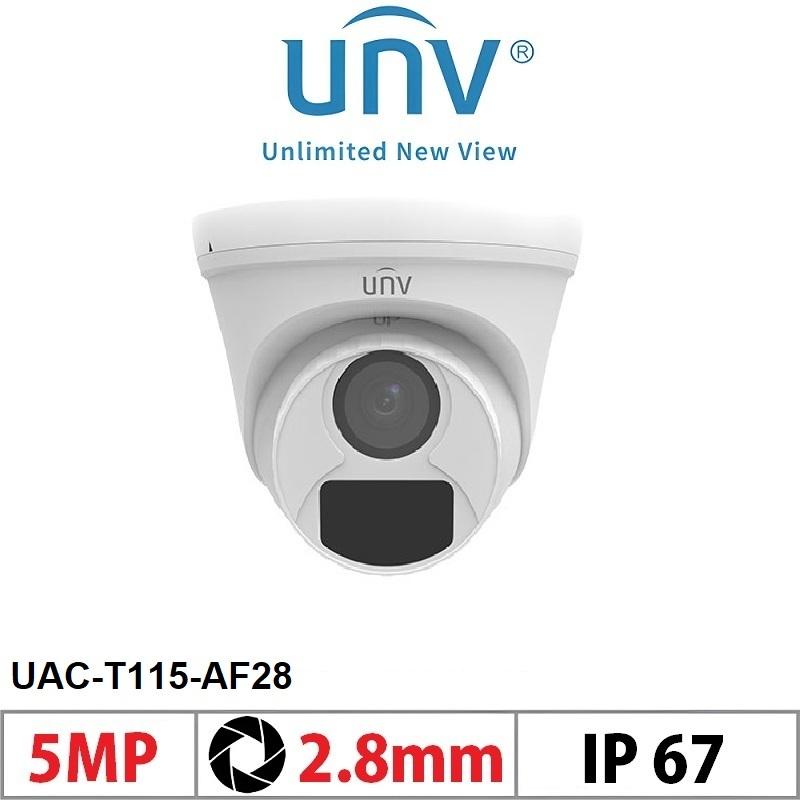

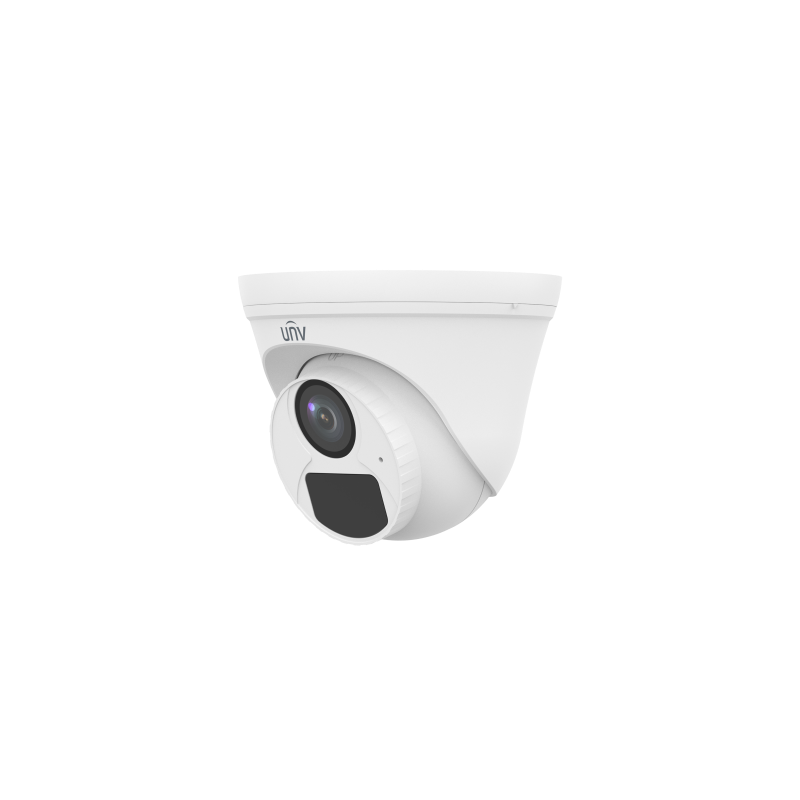

Uniview UAC-T115-AF28 – 5MP HD Fixed IR Turret Camera

UNIVIEW UAC-T115-AF28 5MP IR Turret CCTV Camera | 20m Night Vision

The UNIVIEW UAC-T115-AF28 is a compact 5MP surveillance camera designed to provide clear, wide-area coverage for homes, offices, shops, entrances, and other monitoring environments.

Wide-Angle 5MP Surveillance

Equipped with a 1/2.7-inch CMOS sensor and a 2.8mm wide-angle lens, the camera delivers a 102.2° horizontal field of view. This makes it suitable for monitoring larger areas while maintaining detailed 5MP image quality.

Reliable Night Vision

For nighttime monitoring, the UAC-T115-AF28 features an integrated IR illuminator with up to 20m illumination distance. The camera automatically switches between color images during the day and black-and-white images at night using its built-in IR-cut filter.

Multiple Video Formats

The camera supports TVI, AHD, CVI, and CVBS, providing compatibility with a wide range of analog DVR and XVR systems. This makes it a flexible option for both new installations and system upgrades.

Built-In Microphone and IP67 Protection

A built-in microphone enables audio transmission over compatible coaxial cabling, adding audio monitoring to supported surveillance systems.

With IP67 weather protection, the camera is designed to resist dust and water, making it suitable for both indoor and outdoor installation.

Key Features

• 5MP high-resolution imaging — sharper, more detailed footage than standard 2MP cameras
• 20m IR night vision with auto day/night switching (IR-cut filter)
• 4-in-1 compatibility — TVI, AHD, CVI, CVBS, drops into most existing analog DVR setups
• Built-in mic for synchronized audio over coaxial cable
• IP67 weatherproof housing — built for Nigeria’s heat, dust, and rainy season
• 180° flip support for flexible mounting orientations
• 11-language OSD menu for quick, easy configuration
• Lightweight, compact design (183g) — wall, pole, corner, or pendant mount
