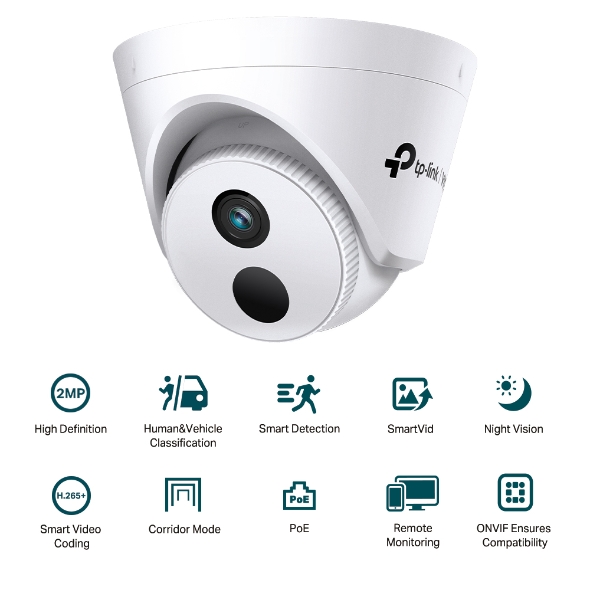

TP-Link VIGI C420I-4MM 2MP Turret Network Camera
TP-Link VIGI C420I-4MM is a professional 2MP Full HD PoE turret IP camera with 30m IR night vision, AI human & vehicle classification, smart event detection and H.265+ compression.
TP-Link VIGI C420I-4MM 2MP Turret Network Camera
Professional 1080p Surveillance with Smart AI Detection
Protect your business, office, shop, warehouse, or property with the TP-Link VIGI C420I-4MM 2MP Turret Network Camera.
Built for professional IP surveillance systems, the C420I combines 2MP Full HD 1920 × 1080 video, a 4mm fixed lens and powerful infrared night vision to provide dependable monitoring day and night. The 4mm lens offers a 74.6° horizontal field of view, making it particularly suitable for entrances, corridors, storefronts, offices, and areas where a more focused viewing angle is preferred.
Smarter Detection, Fewer False Alerts
The camera’s intelligent detection capabilities can distinguish people and vehicles from other objects, helping security teams receive more relevant alerts. It supports smart events including intrusion detection, line-crossing detection, region entering/exiting, object abandoned/removal detection, and video tampering detection.
Clear Monitoring After Dark
With an 850nm infrared LED and up to 30 metres of IR range, the C420I can continue monitoring in low-light and nighttime conditions. Smart IR, WDR and 3D DNR technologies are designed to improve image quality in challenging lighting conditions.
Efficient PoE Installation
The camera supports 802.3af/at PoE, allowing both power and network data to travel through a single Ethernet cable. This can simplify installation and reduce cable clutter when connected to a compatible PoE switch or VIGI NVR.
Efficient H.265+ Video Compression
H.265+ compression helps reduce bandwidth and storage requirements while maintaining useful image quality, making the C420I well suited to multi-camera surveillance installations.
Flexible Professional Management
Manage compatible deployments through the VIGI App, VIGI Security Manager, web interface, or VIGI NVR, with ONVIF Profile S support for compatibility with third-party surveillance systems.
Best suited for: offices, retail stores, warehouses, schools, commercial properties, residential compounds, and other professional CCTV installations.
Key Features
- 2MP Full-High Definition: The VIGI C420I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed, crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality, which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

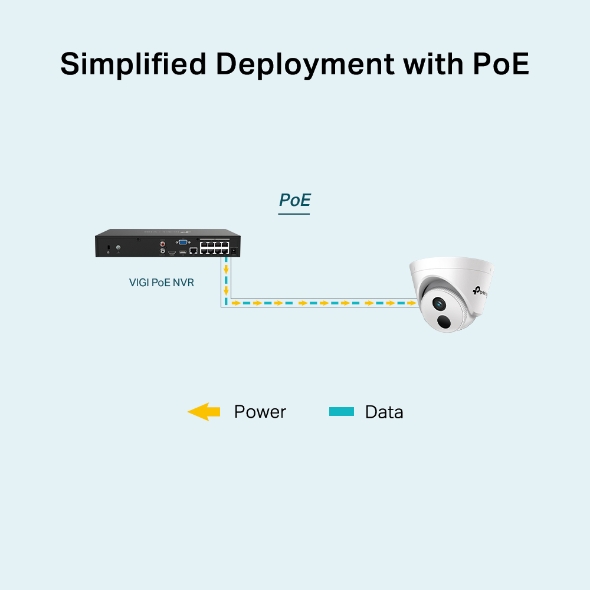

- Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C420I comes with two different lens types to better suit your security needs.
- Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
Technical Specifications
| Specification | VIGI C420I-4MM |
|---|---|
| Camera Type | 2MP IR Turret Network Camera |
| Resolution | 1920 × 1080 Full HD |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Lens | 4mm Fixed Focal Length |
| Lens Mount | M12 |
| Aperture | F2.0 |
| Horizontal FOV | 74.6° |
| Vertical FOV | 41.3° |
| Diagonal FOV | 88.1° |
| DORI – Detect | Up to 60m |
| DORI – Observe | Up to 25m |
| DORI – Recognize | Up to 12m |
| DORI – Identify | Up to 6m |
| IR Night Vision | Up to 30m |
| IR Wavelength | 850nm |
| IR LED | 1 |
| Minimum Illumination | 0.01 Lux colour; 0 Lux with IR |
| Shutter Speed | 1/3–1/10,000s |
| Video Resolution | 1920×1080 / 1280×960 / 1280×720 |
| Frame Rate | Up to 30fps depending on region/video mode |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| WDR | Yes |
| 3D DNR | Yes |
| Smart IR | Yes |
| BLC/HLC | Yes |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Human & Vehicle Classification | Yes |
| Motion Detection | Yes |
| Intrusion Detection | Yes |
| Line-Crossing Detection | Yes |
| Region Entering Detection | Yes |
| Region Exiting Detection | Yes |
| Object Abandoned/Removal Detection | Yes |
| Video Tampering Detection | Yes |
| Abnormal Sound Detection | Supported on the applicable hardware/software version |
| Audio | Built-in microphone on current datasheet |
| Audio Output | No built-in speaker |
| Network Interface | 1 × RJ45 10/100Mbps Ethernet |
| PoE | 802.3af/at, Class 0 |
| Maximum Power Consumption | 5.5W |
| ONVIF | Yes, Profile S |
| Protocols | TCP/IP, UDP, HTTP/HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, and others |
| Cloud | Yes |
| Local Storage | None |
| Privacy Mask | Up to 4 masks |
| ROI | 1 region |
| Corridor Mode | Yes |
| Pan Adjustment | 0–360° |
| Tilt Adjustment | 0–85° |
| Rotation | 0–360° |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95%, non-condensing |
| Dimensions | 123 × 123 × 83mm |
| Net Weight | Approx. 0.19kg |
| Material | Plastic |
