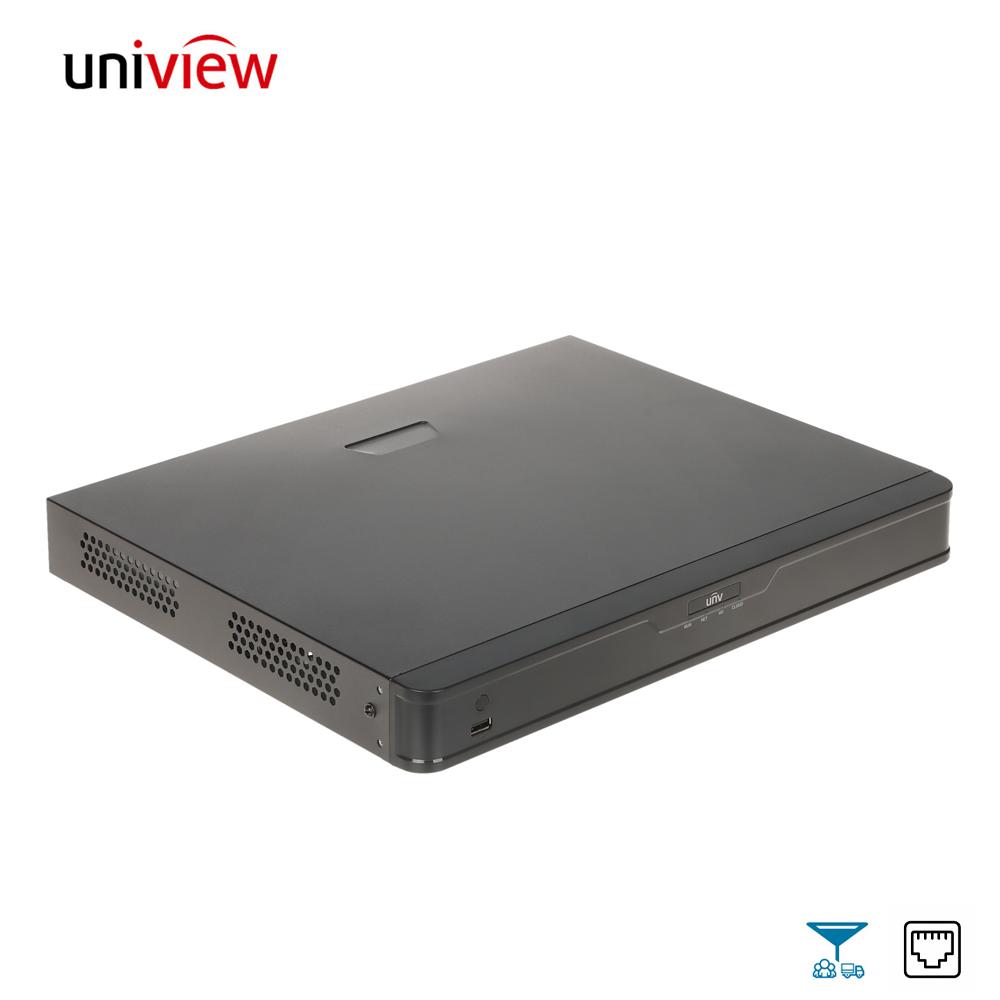

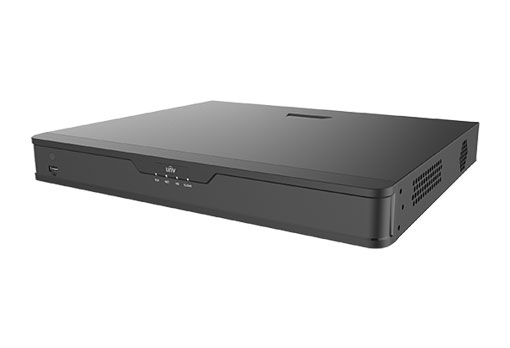

UNIVIEW NVR302-32S — 32-Channel 2-HDD Network Video Recorder

Built for Large-Scale IP Surveillance

Take control of large-scale IP surveillance with the UNIVIEW NVR302-32S, a professional 32-channel network video recorder built for demanding security installations.

Efficient, High-Capacity Recording

• 32 IP camera channels
• Up to 8MP recording
• Ultra265/H.265/H.264 compression — reduces storage and bandwidth needs

Broad Camera Compatibility

The recorder supports mainstream third-party IP cameras through ONVIF Profile S, Profile G, and Profile T, as well as RTSP protocols.

Substantial Storage

Two SATA hard-drive interfaces support up to 8TB per HDD, giving larger CCTV deployments plenty of room to store footage.

Flexible Viewing and Connectivity

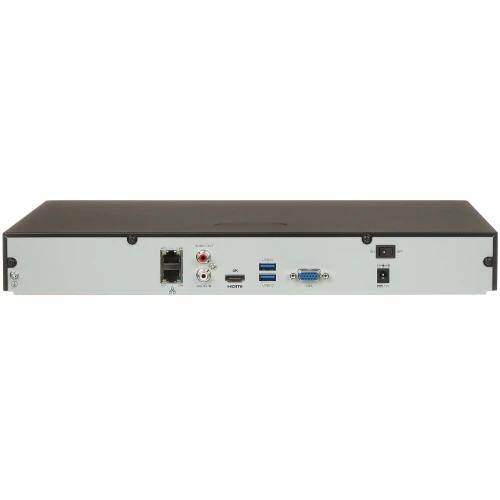

• HDMI and VGA simultaneous video output
• Two Gigabit Ethernet ports
• USB connectivity
• ANR technology — keeps recording reliable if network connectivity drops

Smart, Scalable Monitoring

• Up to 16-channel synchronous playback (per the current datasheet)
• Intelligent camera-side VCA functions
• People-counting capabilities
• Smart Intrusion Prevention

Together, these make the NVR302-32S well suited to offices, retail stores, warehouses, schools, hotels, factories, and other multi-camera security installations.

Key Features

• 32-channel IP video input — scale coverage across large properties
• Records up to 8MP resolution with Ultra265/H.265/H.264 compression
• Two SATA bays supporting up to 8TB per HDD (HDD sold separately)
• Works with third-party ONVIF cameras (Profile S, G, T) — not locked to one brand
• Built-in AI analytics: face detection, intrusion detection, line-crossing, people counting
• Simultaneous 4K HDMI and 1080p VGA output
• 32-channel synchronous playback and flexible live view layouts
• Supports up to 128 remote users for multi-site monitoring
• Two-way audio and ANR technology for storage reliability during network outages
• Cloud upgrade support for future-proofing
