TP-Link XN020-G3 300Mbps Wireless N Gigabit GPON/XPON Router
Bring fast fiber connectivity home with the TP-Link XN020-G3. Get 300Mbps Wireless N Wi-Fi, GPON/XPON fiber access, Gigabit Ethernet, dual 5dBi antennas, and advanced IPTV, VLAN, and ISP management features.
TP-Link XN020-G3 300Mbps Wireless N Gigabit GPON/XPON Router

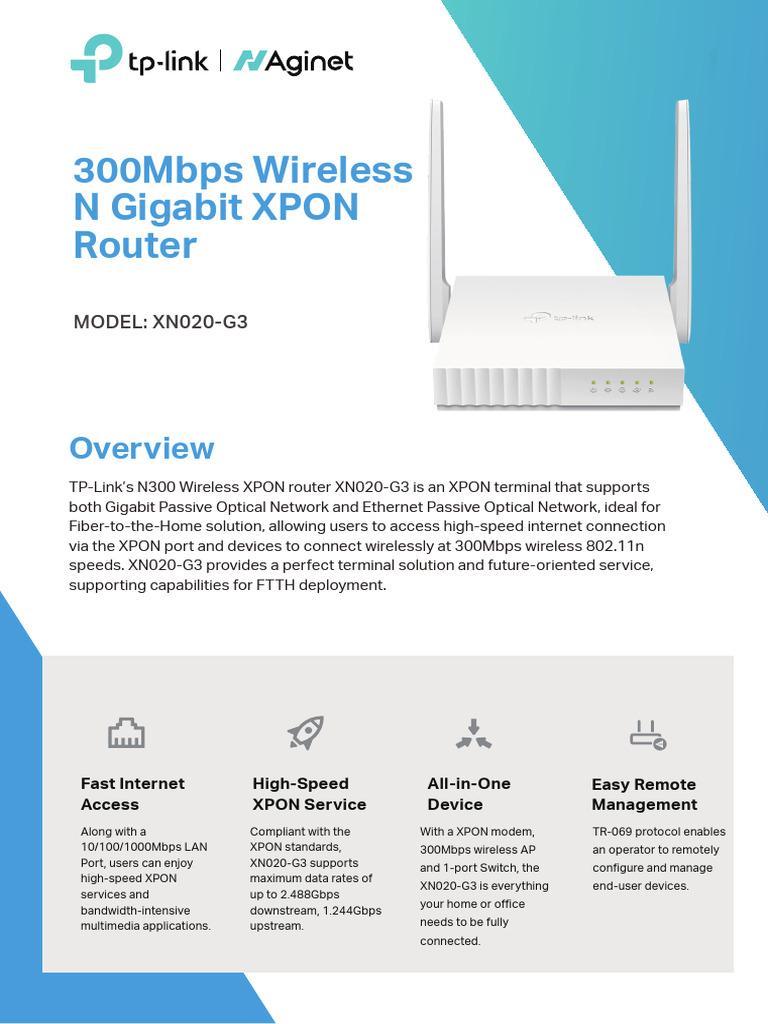

Bring reliable fiber connectivity to your home or office with the TP-Link XN020-G3 300Mbps Wireless N Gigabit GPON/XPON Router, an all-in-one FTTH fiber terminal, wireless access point, and Gigabit Ethernet router designed for compatible GPON/XPON broadband deployments.
The XN020-G3 delivers up to 300Mbps wireless speed on the 2.4GHz band using 802.11n 2×2 MIMO, making it suitable for everyday browsing, HD streaming, online calls, smart-home devices, and general home networking. Its two external 5dBi antennas are designed to provide stable, omnidirectional wireless coverage.

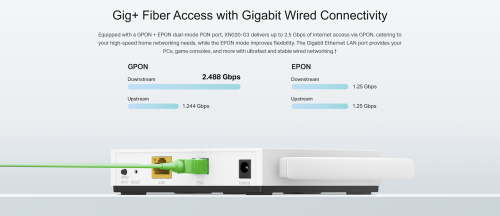

On the fiber side, the XN020-G3 supports GPON/XPON access, with published GPON rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Newer XN020-G3 versions also support GPON + EPON dual modes with automatic switching, providing greater flexibility for compatible fiber deployments.
A Gigabit 10/100/1000Mbps LAN port provides high-speed wired connectivity for a PC, smart TV, game console, switch, or other Ethernet device. The device also supports advanced features such as 802.1Q VLAN, IPTV/IGMP, QoS, NAT/SPI firewall, access control, IPv4/IPv6, and port forwarding.

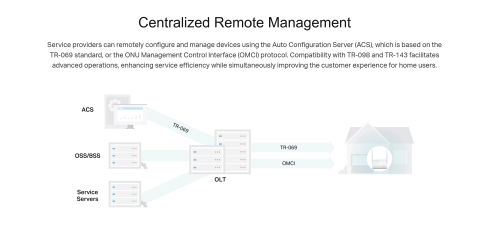

For ISP deployments, the XN020-G3 supports TR-069 and OMCI remote management, while compatible versions can be managed locally through a web interface and, on newer versions, the Aginet app.
Key Features
- High-Speed WiFi: Up to 300 Mbps WiFi speeds on the 2.4 GHz band.*
- XPON Dual Modes: Supports both GPON and EPON dual modes with automatic switching for flexible fiber internet access.
- Gigabit Wired Connectivity: One Gigabit Ethernet LAN port offers fast wired internet access.
- Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
- Enhanced Security: Multi-SSID and parental controls provide personalized and safer online experiences.
- Easy Setup and Use: Simplifies network and WiFi control and management via the robust Aginet app.
- Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | TP-Link |
| Model | XN020-G3 |
| Product Type | Wireless N Gigabit GPON/XPON Router |
| Wireless Standard | IEEE 802.11b/g/n |
| Wireless Band | 2.4GHz |
| Wireless Speed | Up to 300Mbps |
| MIMO | 2×2 |
| Antennas | 2 × external 5dBi |

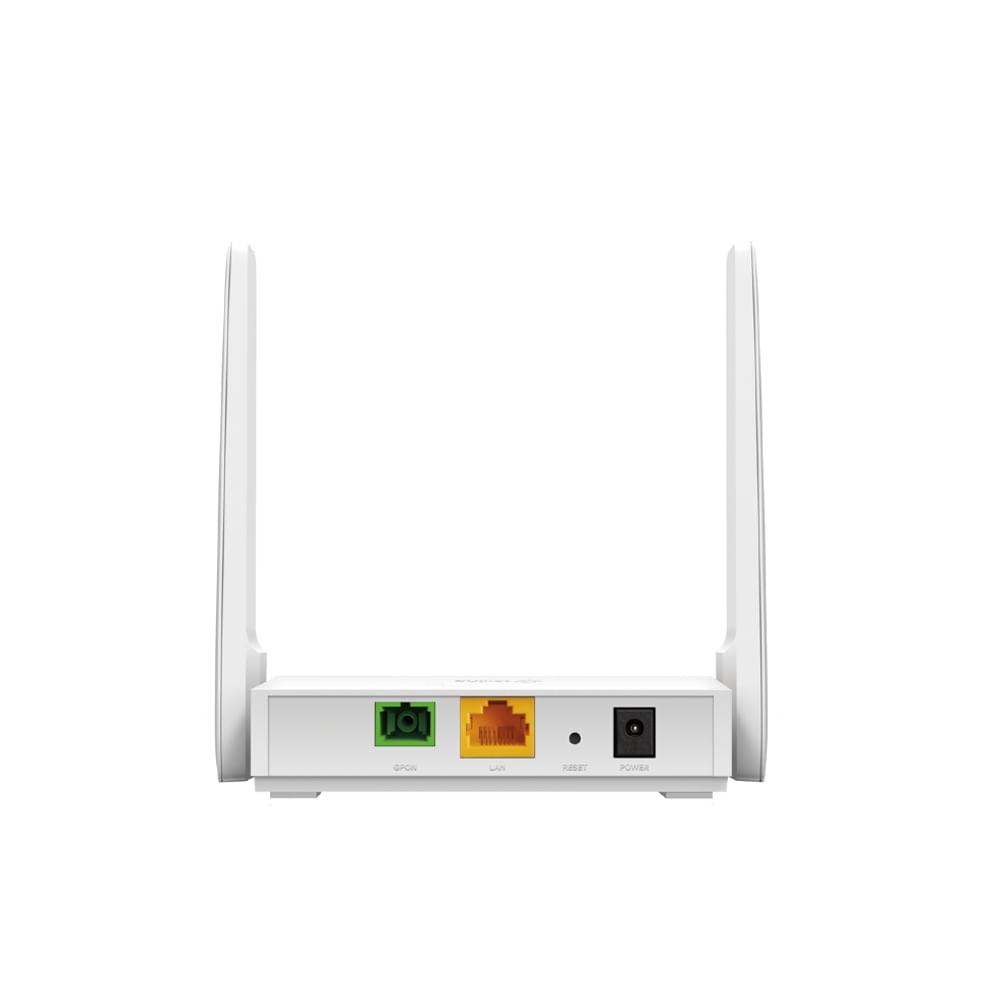

| PON Interface | 1 × SC/APC |
| Fiber Technology | GPON; GPON/EPON dual-mode on applicable revisions |
| LAN | 1 × 10/100/1000Mbps Gigabit |
| GPON Downstream | Up to 2.488Gbps |
| GPON Upstream | Up to 1.244Gbps |
| EPON Downstream | Up to 1.25Gbps on dual-mode versions |
| EPON Upstream | Up to 1.25Gbps on dual-mode versions |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Firewall | NAT Firewall, SPI Firewall |
| QoS | Supported |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP Proxy/Snooping, Bridge & Tag VLAN |
| Management | Web interface; Aginet app on supported versions |
| Remote Management | OMCI, TR-069 |
| Protocols | IPv4 & IPv6 |
| Dimensions | 115 × 106.7 × 24.3mm |
| Power | Varies by revision; commonly 12V/0.6A |
| Package | Router, Ethernet cable, power adapter, quick installation guide |
