TP-Link XC220-G3v AC1200 Dual-Band GPON/XPON Router
Power your fiber network with the TP-Link XC220-G3v. Get AC1200 dual-band Wi-Fi, Gigabit LAN, GPON/XPON fiber connectivity, built-in VoIP, and advanced ISP remote management in one powerful device.

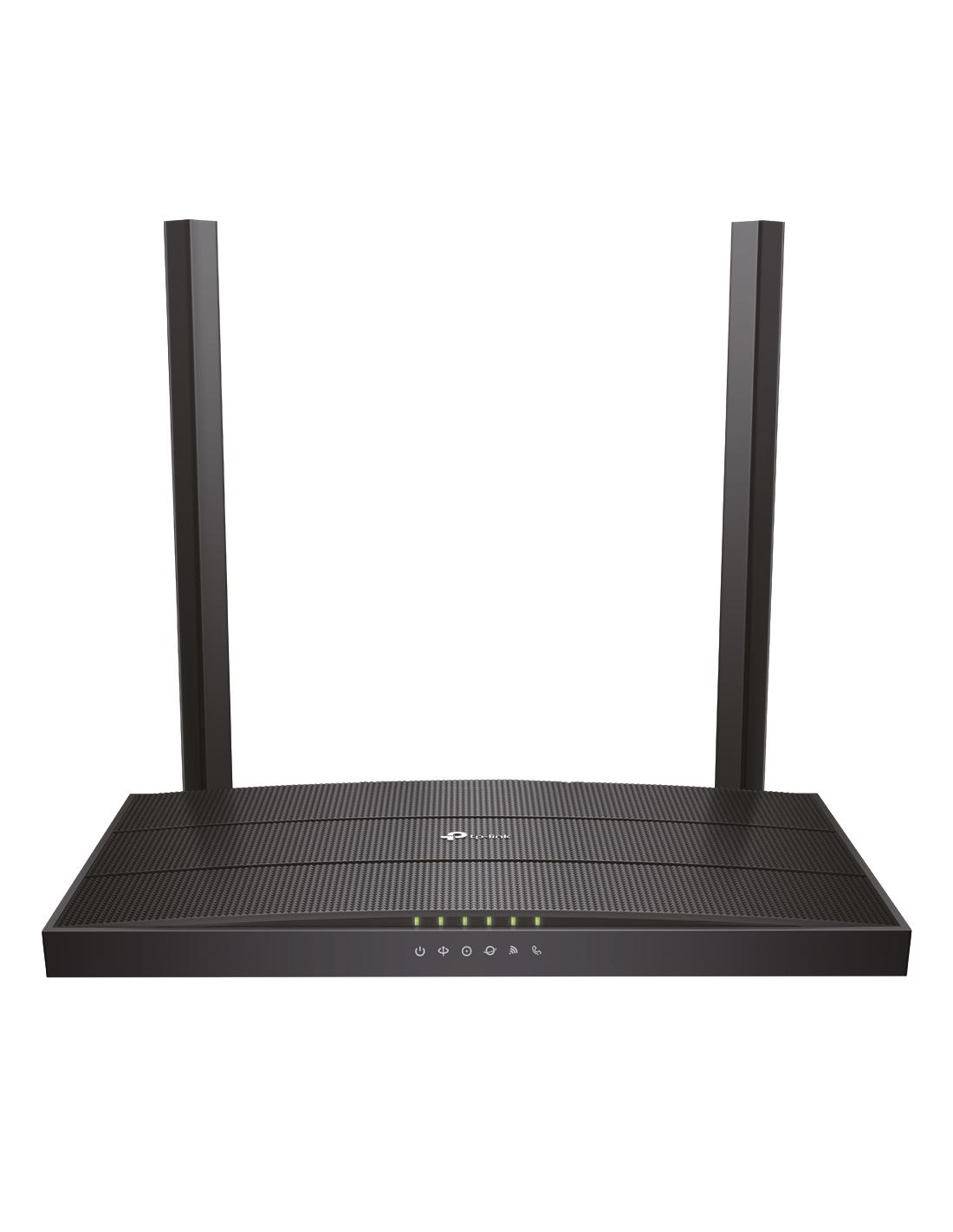

TP-Link XC220-G3v AC1200 Dual-Band GPON/XPON Router
Bring high-speed fiber connectivity and powerful dual-band Wi-Fi together with the TP-Link XC220-G3v AC1200 Wireless VoIP GPON/XPON Router. Designed for Fiber-to-the-Home deployments, this all-in-one fiber terminal combines GPON/XPON access, AC1200-class Wi-Fi, Gigabit Ethernet, and VoIP in a single device. TP-Link documentation describes the XC220-G3v as supporting both GPON and EPON on applicable XPON versions.

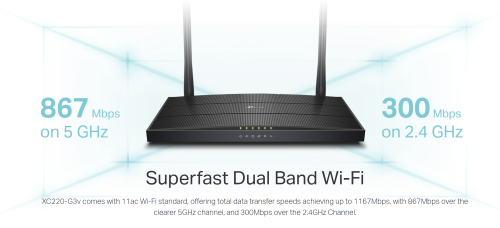

Its dual-band Wi-Fi delivers up to 867Mbps on 5GHz and 300Mbps on 2.4GHz, for a combined AC1200-class wireless experience. The 5GHz band is ideal for bandwidth-intensive activities such as HD streaming, gaming, and large downloads, while 2.4GHz provides broad compatibility for everyday devices.

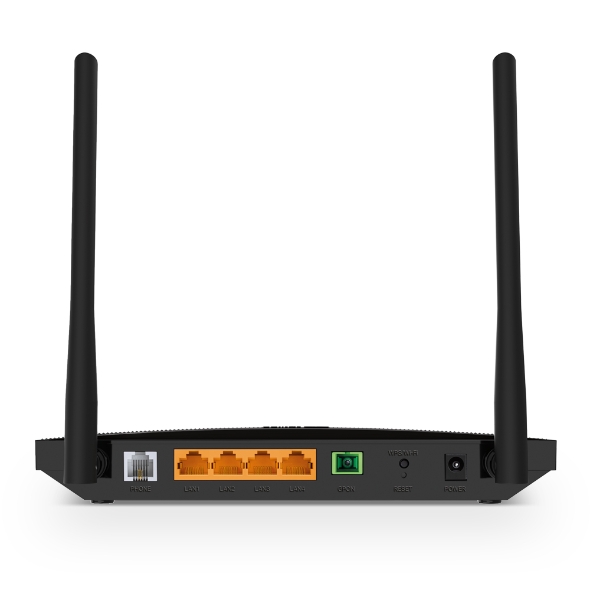

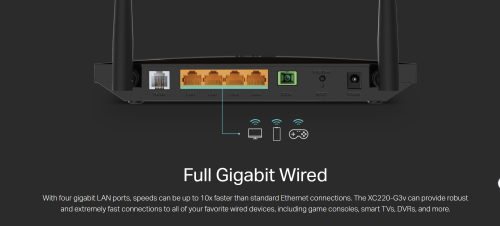

For wired networking, the XC220-G3v features four Gigabit 10/100/1000Mbps LAN ports, allowing compatible PCs, smart TVs, gaming consoles, switches and other Ethernet devices to take advantage of high-speed wired connections.
The integrated SC/APC GPON optical port provides the fiber connection, while the RJ11 FXS port enables VoIP calling when supported and provisioned by the service provider. VoIP functions include features such as call forwarding, call hold, caller ID, three-party conferencing, and support for up to eight SIP accounts in the documented configuration.
For ISP and network deployment, the XC220-G3v supports OMCI and TR-069 remote management, VLAN/802.1Q functionality, QoS, IPv4/IPv6, NAT firewall, port forwarding, VPN pass-through, and other advanced network-management functions. Compatible versions also support EasyMesh/TP-Link OneMesh.
Key Features
- Superfast Dual-Band WiFi: Up to 1.2 Gbps Wi-Fi speed, 300 Mbps 2.4GHz, 867 Mbps 5GHz*
- Full Gigabit Port: Up to 10× faster than standard Ethernet, delivering lightning-fast wired performance
- Supports VOIP Calls: Simply make or receive phone calls over the Internet
- Easy Remote Management: Supports the ONT Management and Control Interface (OMCI), easy to configure and manage remotely from an OLT
- Smooth Connection: Supports VLAN, 802.1q, smooth network connection for IPTV and other services
Technical Specifications
| Specification | Details |
|---|---|
| Brand | TP-Link |
| Model | XC220-G3v |
| Product Type | AC1200 Wireless VoIP GPON/XPON Router |
| Wi-Fi Standard | IEEE 802.11ac/n/a 5GHz; 802.11b/g/n 2.4GHz |
| 5GHz Speed | Up to 867Mbps |
| 2.4GHz Speed | Up to 300Mbps |
| Fiber Interface | 1 × SC/APC GPON |
| GPON Standards | ITU-T G.984 / G.988 |
| GPON Rate | Up to 2.488Gbps downstream / 1.244Gbps upstream |
| LAN Ports | 4 × 10/100/1000Mbps Gigabit RJ45 |
| Telephone Port | 1 × RJ11 FXS |
| Antennas | 2 × external dual-band antennas |
| Wireless Security | WPA/WPA2; WPA3-PSK on applicable revisions |
| Mesh | EasyMesh / TP-Link OneMesh on applicable revisions |
| Remote Management | OMCI, TR-069 |
| QoS | 802.1p / Hardware QoS |
| Firewall | NAT Firewall, Access Control, MAC/IP/URL Filtering |
| IPv6 | Supported |
| VPN Pass-through | PPTP, L2TP, IPSec |
| VoIP | FXS/SIP features |
| Power | 12V DC; adapter rating varies by hardware/region |
| Buttons | WPS/Wi-Fi, Reset; Power button on applicable versions |
