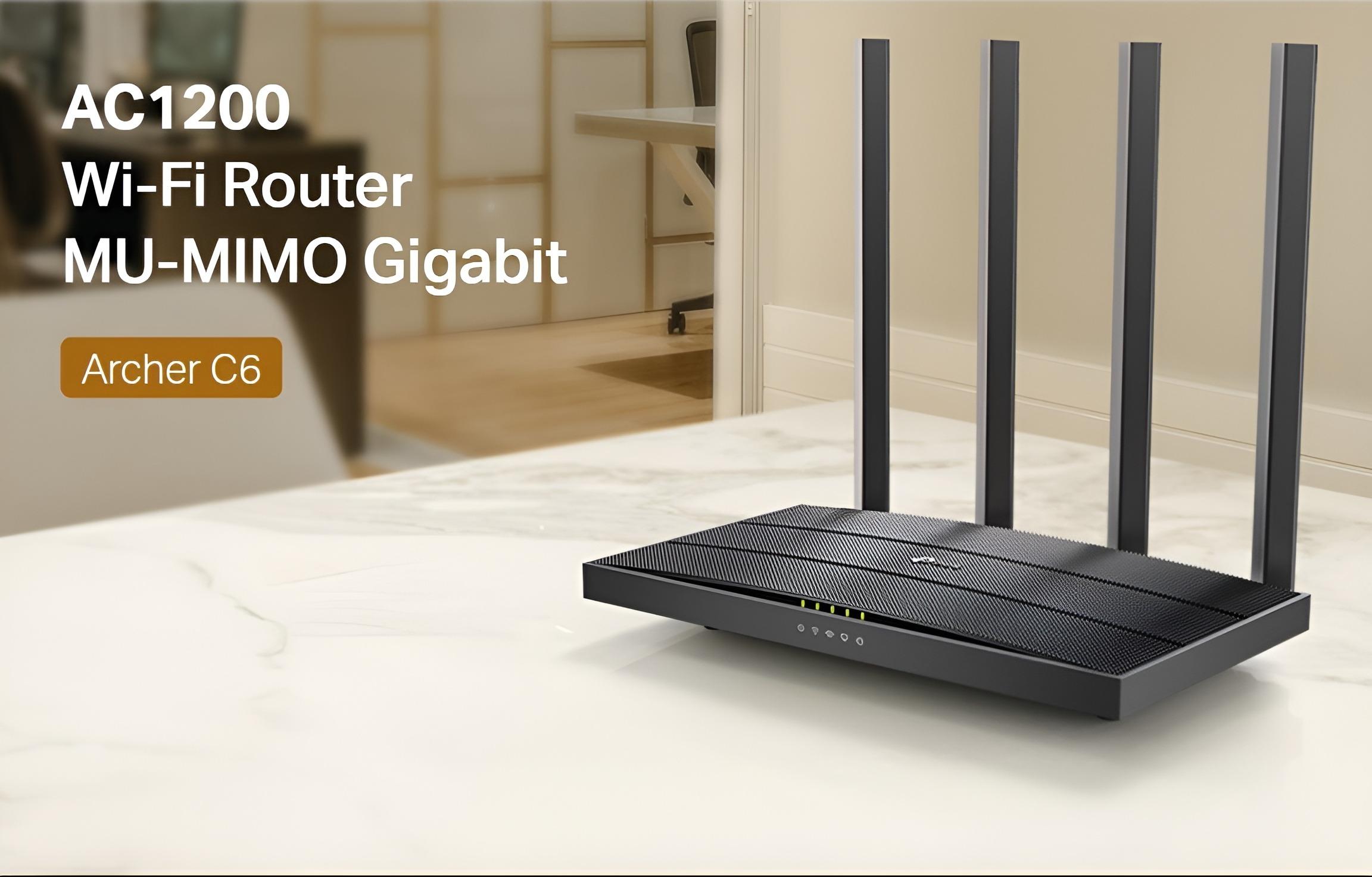

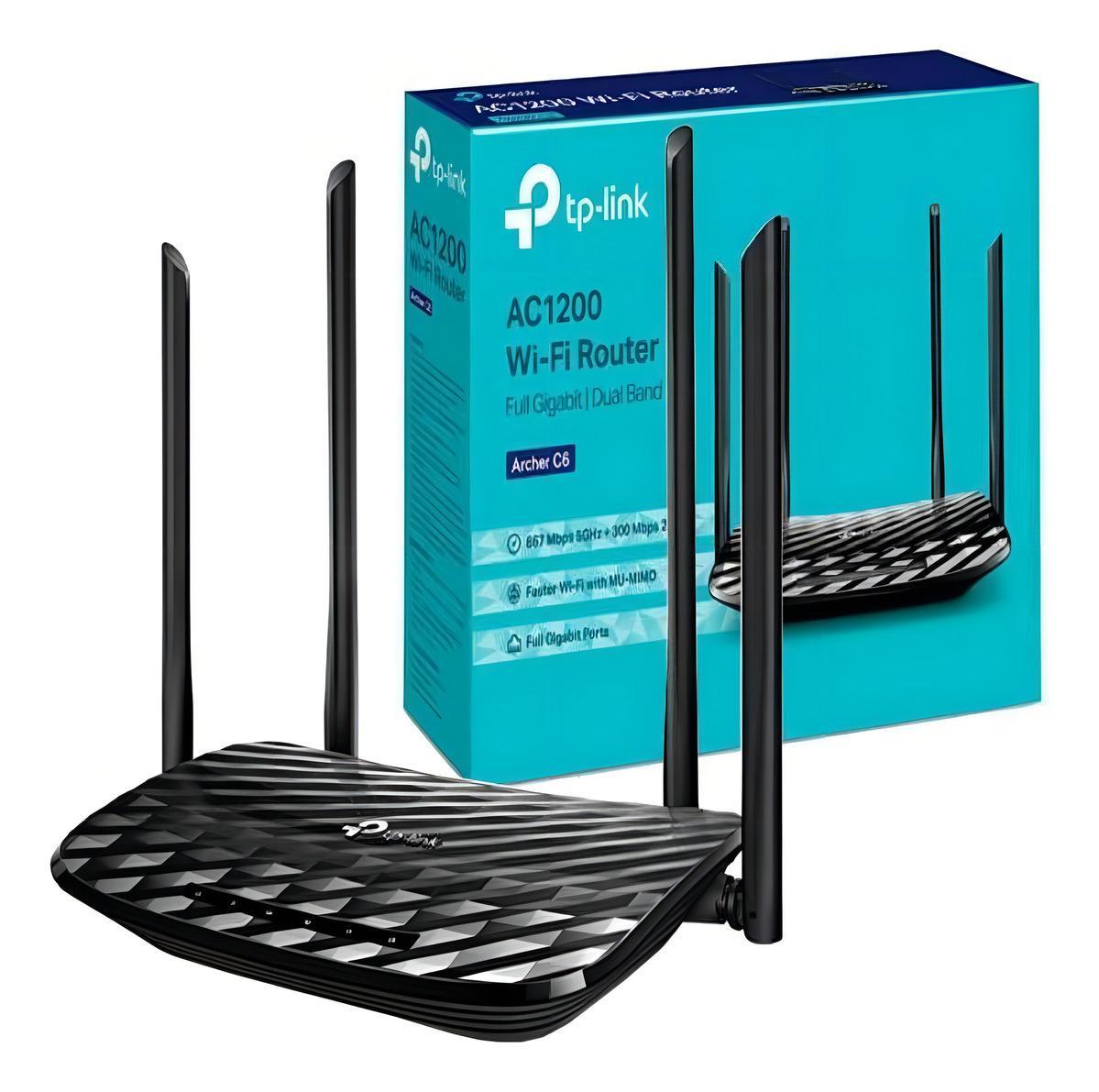

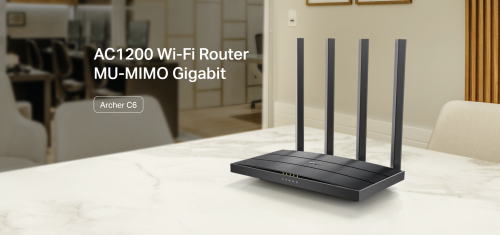

TP-Link Archer C6 AC1200 Mesh Wi-Fi Router
The TP-Link Archer C6 AC1200 is a dual-band gigabit wireless router supporting MU-MIMO, Beamforming, and EasyMesh/OneMesh technology for whole-home coverage.

The Archer C6 delivers 867Mbps on the 5GHz band and up to 300Mbps on 2.4GHz, providing an AC1200-class wireless network. The 5GHz band is ideal for bandwidth-intensive activities such as HD/4K streaming and online gaming, while 2.4GHz provides wider compatibility and coverage for everyday devices.

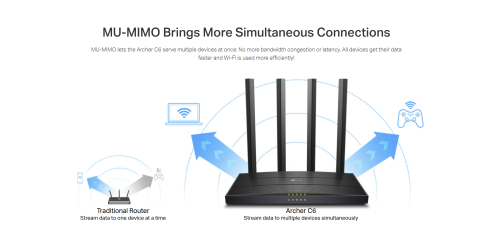

Its MU-MIMO technology allows the router to communicate with multiple compatible devices simultaneously, helping improve network efficiency when several devices are active. Beamforming concentrates wireless signals toward connected clients, while Airtime Fairness helps prevent slower devices from occupying disproportionate wireless airtime.

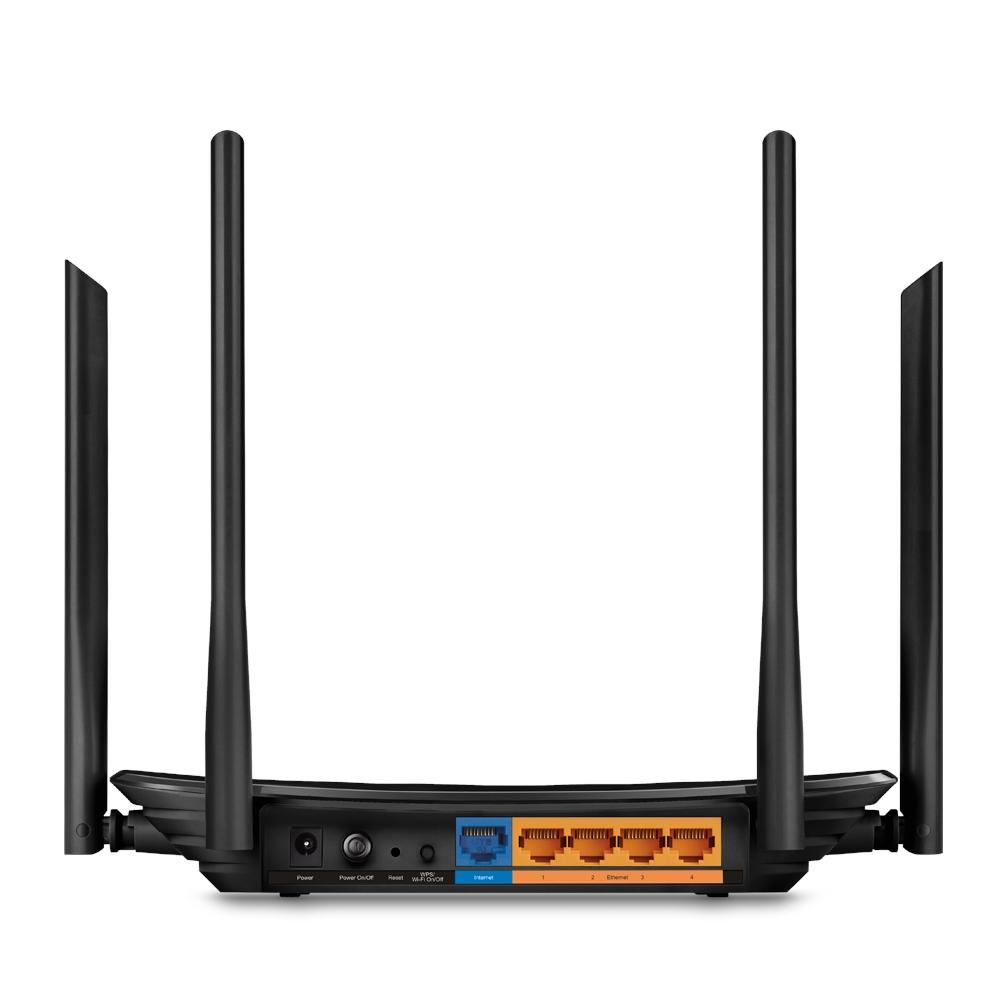

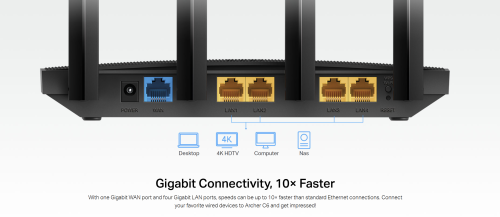

For wired networking, the Archer C6 features 1 ร Gigabit WAN and 4 ร Gigabit LAN ports, making it an excellent match for high-speed broadband connections and wired devices such as gaming consoles, Smart TVs, PCs, NAS storage, and network switches.

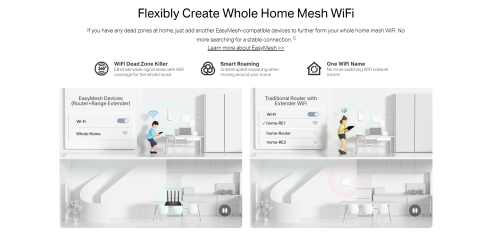

The router also supports EasyMesh on applicable versions, allowing compatible TP-Link networking devices to work together to create a more seamless whole-home Wi-Fi network. It can additionally operate in Access Point mode when you need to add Wi-Fi to an existing wired network.

Security and management features include WPA/WPA2/WPA3 support on current versions, SPI firewall, guest networking, parental controls, access control, IPv4/IPv6, QoS, and VPN server support. Configuration and everyday management are made easier through the TP-Link Tether app.
Key Features
- AC1200 Dual-Band Wi-Fiย โ 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
- MU-MIMO Technologyย โ Simultaneously transfers data to multiple devices for 2ร faster performance.
- Boosted Coverageย โ Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Access Point Mode โSupports AP Mode to transform your wired connection into a wireless network.
- EasyMesh-Compatibleย – Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.ยง
- VPN Supportย –ย Safely reach files in your local NAS, wherever you are.
- Easy Setup โ Set up your Wi-Fi in minutes with the TP-Link Tether app.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | TP-Link |
| Model | Archer C6 |
| Wi-Fi Standard | Wi-Fi 5 / IEEE 802.11ac |
| Wi-Fi Class | AC1200 |
| 5GHz Speed | Up to 867Mbps |
| 2.4GHz Speed | Up to 300 Mbps* |
| Wireless Bands | Dual-Band 2.4GHz + 5GHz |
| Antennas | 4 ร Fixed High-Performance External Antennas |
| Beamforming | Yes |
| MU-MIMO | Yes |
| Airtime Fairness | Yes |
| WAN | 1 ร Gigabit Ethernet |
| LAN | 4 ร Gigabit Ethernet |
| Operating Modes | Router / Access Point |
| Mesh | EasyMesh-compatible on supported versions; OneMesh support on applicable versions |
| Guest Network | 2.4GHz + 5GHz |
| Security | SPI Firewall, Access Control, WPA/WPA2/WPA3* |
| QoS | Device-Based QoS |
| Parental Controls | URL Filtering & Time Controls |
| IP Support | IPv4 / IPv6 |
| VPN Server | OpenVPN / PPTP on supported versions |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| CPU | 1.2GHz on current documented versions |
| Management | TP-Link Tether App / Web Interface |
| Power | 12V โ 1A |
| Dimensions | Version-dependent; approx. 215โ230 ร 117โ144 ร 32โ35mm |
