AJAX Transmitter Jeweller

AJAX Transmitter Jeweller Wireless Module

Give your existing detectors a second life

You already own good wired detectors. Replacing them costs money, and re-cabling costs more. The Ajax Transmitter connects them to your Ajax system wirelessly, so you keep the hardware and gain the app.

One small module, many devices

Connect any detector with a normally closed (NC) or normally open (NO) contact. That includes outdoor motion sensors, IR beams, electric fence energisers, gas or water-leak sensors, and panic buttons. Choose the alarm type in the Ajax app, and the system treats the detector as a full Ajax device.

Secure, long-range radio

Transmitter talks to the hub through encrypted Jeweller radio, up to 1,600 m in open space. Frequency hopping and per-session authentication protect it against interference and fake modules. If communication is lost, the system detects it within about 36 seconds.

Built to last

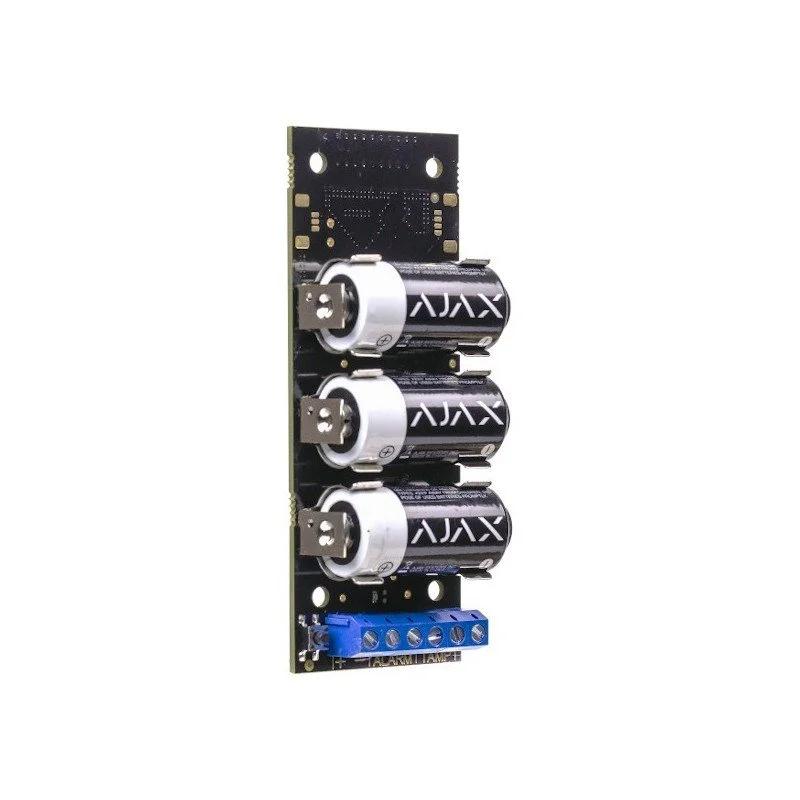

Three pre-installed CR123A batteries run the module for up to 5 years. Tamper protection and a built-in accelerometer alert you if anyone opens or moves it.

Easy to install

The module is small enough to sit inside most detector cases. If the case is metal or too small, you can use a radio-transparent enclosure. Add it to the system by scanning its QR code.

Good to know: each Transmitter supports one wired device. For several devices on one module, see the MultiTransmitter. Outdoor detectors may need a sealed, radio-transparent enclosure.

Key Features

• Works with any NC/NO device: connect motion sensors, reed switches, vibration sensors, IR barriers, gas and liquid-level detectors, keypads or panic buttons.
• No new cabling: it sends alarms wirelessly to the hub, so you can add hard-to-wire locations.
• Encrypted Jeweller radio: two-way communication with AES block encryption, and range up to 1,600 m in open space.
• Up to 5 years of battery life: three CR123A batteries come pre-installed.
• Powers your detector: it provides a 3.3 V supply to the connected device.
• Tamper and removal alerts: a separate tamper input and a built-in accelerometer warn you if the module is moved.
• Choose your event type: intrusion, fire, panic, gas, leak, fault, and more, selected in the Ajax app.
• Compact size: 100 × 39 × 22 mm, so it fits inside most detector housings or a mounting box.
• Simple pairing: scan the QR code in the Ajax app. No special tools are needed.
• Works with all Ajax hubs and range extenders.
