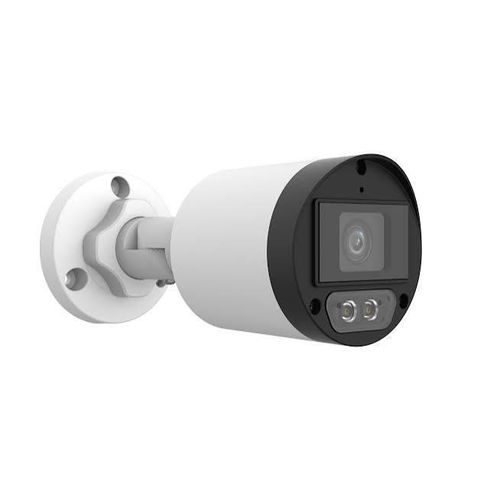

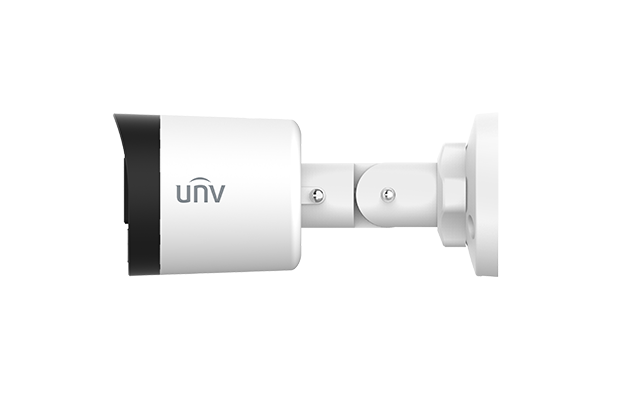

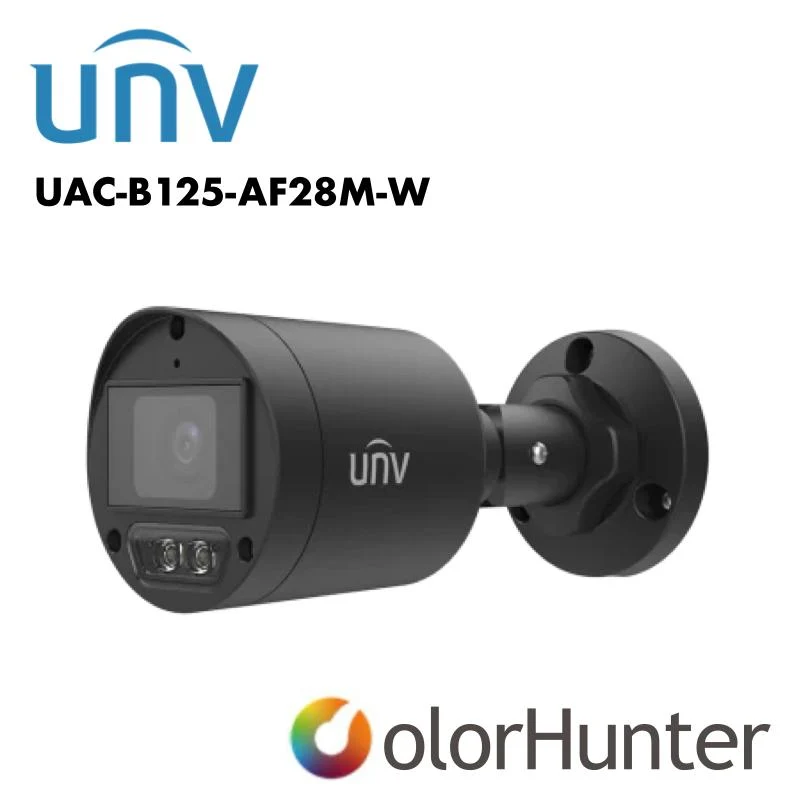

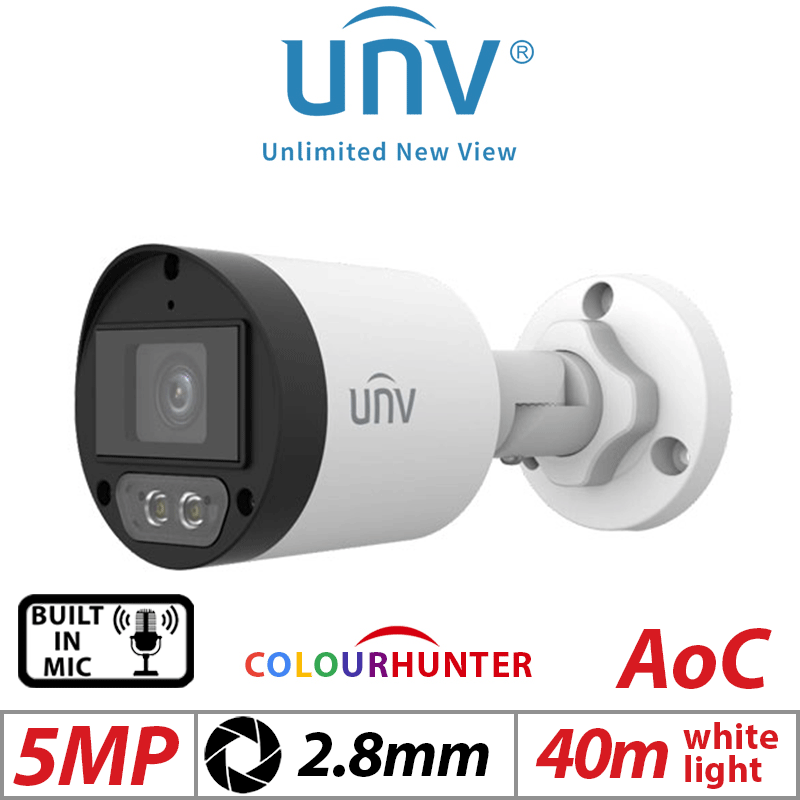

Uniview UAC-B125-AF28M-W 5MP ColorHunter Bullet Camera

Uniview UAC-B125-AF28M-W 5MP ColorHunter Bullet CCTV Camera

See More. See in Color. Stay Protected.

The UNIVIEW UAC-B125-AF28M-W is a professional 5MP ColorHunter HD fixed mini-bullet analog CCTV camera built to deliver detailed, full-color surveillance around the clock.

Sharp, Wide-Angle Video

A high-quality 1/2.7-inch CMOS sensor pairs with a wide 2.8mm fixed lens to provide a 111.5° horizontal viewing angle — ideal for monitoring entrances, shops, offices, homes, warehouses, and other areas where broad coverage matters.

24/7 Full-Color Surveillance

Unlike conventional IR cameras that switch to black-and-white at night, this camera uses two integrated white-light illuminators to maintain color images in low light.

• Illumination distance — up to 40 metres, preserving color detail after dark
• Minimum illumination — 0.005 lux, with white-light activating when the scene needs it

Flexible 4-in-1 Compatibility

The camera supports TVI, AHD, CVI, and CVBS, so it works with compatible analog DVR/XVR systems. That makes it a practical upgrade for an existing analog setup, without replacing the whole system.

Built-in Audio

A built-in microphone captures audio and transmits it over supported coaxial connections, adding another layer of information to compatible systems. Audio support applies to selected TVI and CVI modes.

Built for Outdoor Use

• Metal housing for durability
• IP67 weatherproof and dustproof protection
• 4kV surge protection
• Operating range — -30°C to 60°C

Together, these make the camera suitable for demanding indoor and outdoor environments.

Key Features

• 24/7 Full-Color Imaging — white-light illumination keeps footage in color even at night, no grainy B&W switch
• 5MP High-Definition Sensor — sharp, detailed daytime and nighttime footage
• 40m White-Light Range — dual illuminators light up a wide area for clear identification
• 4-in-1 Flexibility — compatible with TVI, AHD, CVI, and CVBS DVRs, including Uniview XVR301 series
• Built-in Microphone — captures audio over the same coax cable, no extra wiring
• IP67 Weatherproof Metal Housing — durable, rugged build for outdoor installs
• Wide 111.5° Field of View — strong coverage for driveways, entrances, and open areas
• 180° Flip Adjustment — flexible mounting for walls, eaves, or poles

Technical Specifications
