TP-Link MC210CS Gigabit Single Mode Converter
TP-Link MC210CS Gigabit Single Mode Converter TP-Link MC210CS Overview The MC210CS Gigabit Single-Mode Media Converter from TP-Link lets you utilize both copper and fiber Gigabit cables in your […]
TP-Link MC210CS Gigabit Single Mode Converter
TP-Link MC210CS Overview

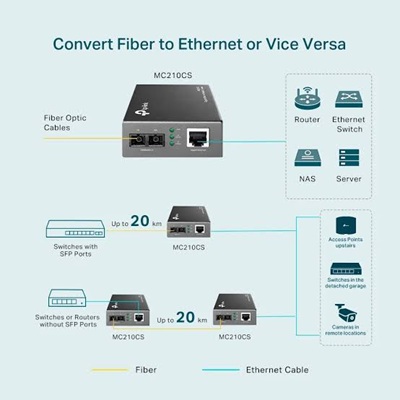

The MC210CS Gigabit Single-Mode Media Converter from TP-Link lets you utilize both copper and fiber Gigabit cables in your network. It is designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. It works at 1310nm wavelength with single-mode fiber cable utilizing the SC-type connector. You can use this converter as a stand-alone unit or with an optional TP-link chassis. It supports longwave (LX) laser specification and extends the maximum fiber distance to 9.3 miles.
SPECIFICATION
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
|---|---|
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fibre distance up to 20km |
| Ports | 1× 1000M SC/UPC port 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.8W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC210CS • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
Specifications
Key Features
- Force /Auto Transfer Mode for FX Port
- Complies with IEEE 802.3ab & IEEE 802.3z
- Extends Fiber Distance
- External Power Adapter Included
